Lepu Medical Grade AP-20 Wrist Pulse Oximeter Blood Oxygen Meter Sleep Screener - Recording and Measuring Your Snoring Respiration Rate Blood Oxygen Level Pulse Rate and Every Sleep

Features:

• Non-invasive Measurement.
• The Lepu Medical Grade AP-20 wrist pulse oximeter fingertip oxygen monitor has a visible and vibration alarm function, it can be applied at home or in healthcare facilities environment.

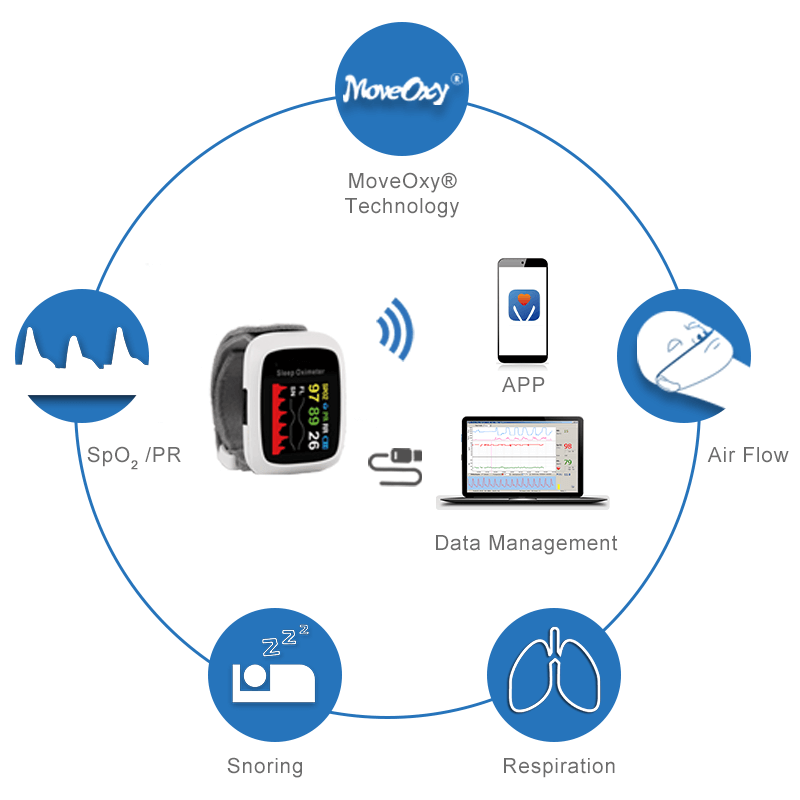

• It can be used for sleep apnea monitoring, measuring, displaying, and storing SpO2 (blood oxygen saturation), Pulse Rate (PR), PI (Perfusion Index), and can measure Snoring, Respiration Rate (an oral-nasal cannula is included in the packing list), Airflow (an air-flow module is included in the packing list).
• It supports Free App Download for Android and iOS devices with wireless Bluetooth connectivity. The app can show real-time SpO2, and pulse rate, get the record, and display results, and reports.
• Data exported to a computer/PC by USB cable with analysis software and printout.

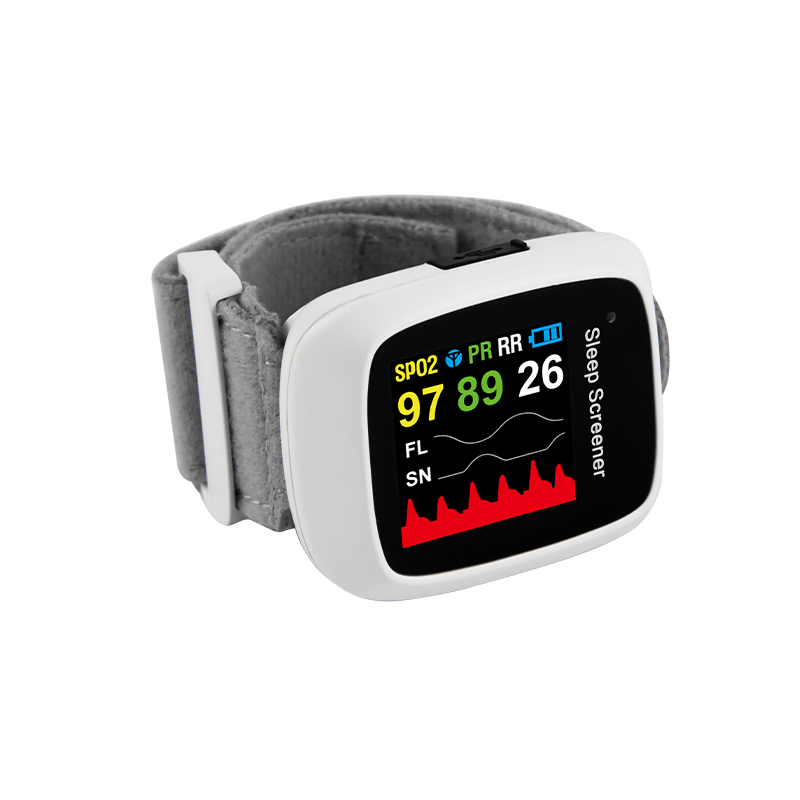

• Convenient wearable design with 1.44-inch LED display.
• Equipped with standard finger probe sensor for adults.
• Body movement can be recorded and reviewed in the software.

• Power saving mode with display off, brightness adjustable.
• Data storage up to 72 hours.

* Professional Analysis Software:

• The data management software allows users to manage, review, and analyze the records in trends, graphs, and statistics. The printout of the reports provides an intuitive view of pre-screening sleep studies.

Kind Note:

• About the AP-20 Wrist Pulse Oximeter Sleep Screener, we have Australian plugs, European plugs, and UK plugs, we will select the matching plug according to your country of delivery and deliver it to you accurately.

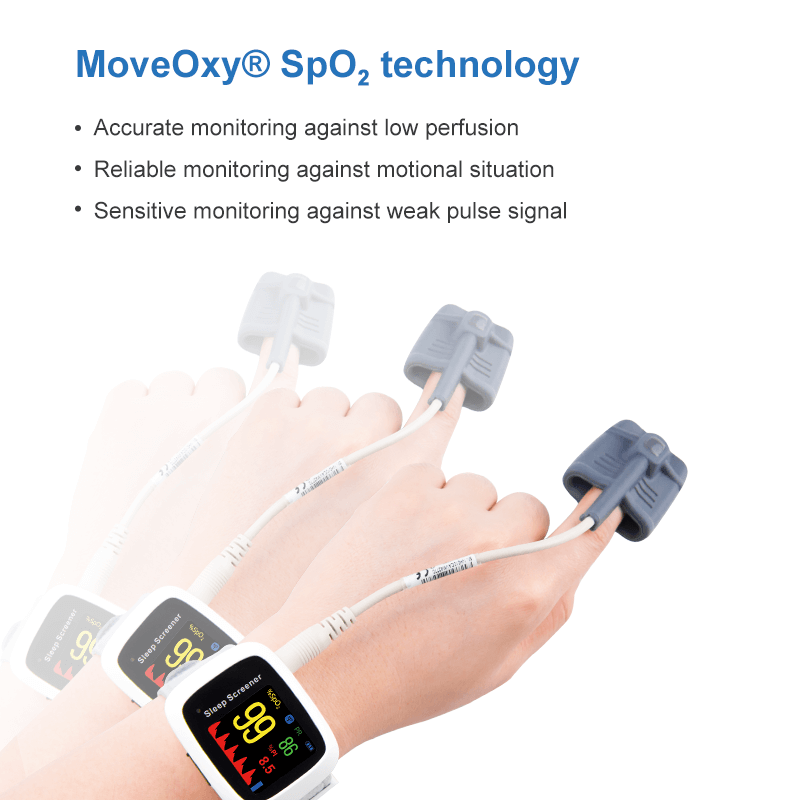

* Adopt Lepu MoveOxy® SpO2 Technology:

• Accurate monitoring against low perfusion
• Reliable monitoring against motional situation
• Sensitive monitoring against weak pulse signal

* Certificate: CE (Click to view details >>)

APP Download Method:

* Step 1:

• For Android devices: search "Vihealth" on Google Play, and then download the app.
• For iOS devices: search "Vi health" in App Store, and then download the app.

* Step 2:

• Open the app "ViHealth" and connect the AP-20 Wrist Pulse Oximeter via Bluetooth.

Product Details and Specifications:

* Basic Information:

• Brand: Creative Medical
• Product Name: Wrist Pulse Oximeter
• Model: AP-20
• Manufacturer: Lepu Creative Medical
• Origin: China
• Warranty Period: 2 Years
• Service Life: 5 Years (actually can be used longer)

* Physical Data:

• Screen: 1.44-inch LED display
• Dimensions: 56mm x 44mm x 16mm
• Net weight: 40g

* SpO2 (oxygen saturation):

• Transducer: Dual-wavelength LED
• Display range: 0~100%
• Measuring accuracy: Arms≤3% (range from 70% to 100%)

* Pulse Rate:

• Measuring range: 30bpm~250bpm
• Measuring accuracy: ±2bpm or ±2% (whichever is greater)
• Resolution: 1bpm

* Perfusion Index (PI) Display:

• PI display range: 0.2%~20%

* Preset Alert Limits:

• SpO2 low alert limit: 85%
• PR(Pulse Rate) high alert limit: 120bpm
• PR(Pulse Rate) low alert limit: 50bpm

* Oral-nasal Air Flow
:

• Measuring method
: Oral/nasal airflow pressure

• Airflow waveform
: Wireless transmitting rate of 50Hz; Data recording rate of 25Hz

• Snore waveform
: Wireless transmitting rate of 50Hz; Data recording rate of 25Hz


* Respiration Rate
:

• Measuring range
: 6~60rpm

• Measuring accuracy: ±2rpm or ±5%(whichever is greater)


* Power Supply

:

• Battery voltage: 3.70VDC

• Operating current
: ≤40mA
• Working time(display off)
: >I8hours

• Charger: 100-240VAC input, 5VDC/I.2A output


 * Wireless Connections:

• Frequency band
: 2.4GHz
• Bluetooth version: Bluetooth V4.0 and above

 * Data Storage and Upload
:

• Data Storage: >70 hours
 (up to 72 hours)
• Data Upload: USB interface or wireless(Bluetooth)


 * Operating Environment
:

• Operating temperature: 5~40℃

• Operating humidity: 15%~93%

• Atmospheric pressure: 70kPa~106kPa


Package Details:

Package Weight: 0.52kg
Package Size: 25.4cm x 20.5cm x 12.5cm

Standard Accessories Packing List:

• 1 x Main Unit of AP-20 Wrist Pulse Oximeter
• 1 x SpO2 sensor with adult finger rubber
• 1 x AC power adapter
• 1 x USB data cable
• 1 x Wristband
• 1 x Oral-nasal cannula
• 1 x Air-flow module
• 1 x User manual
